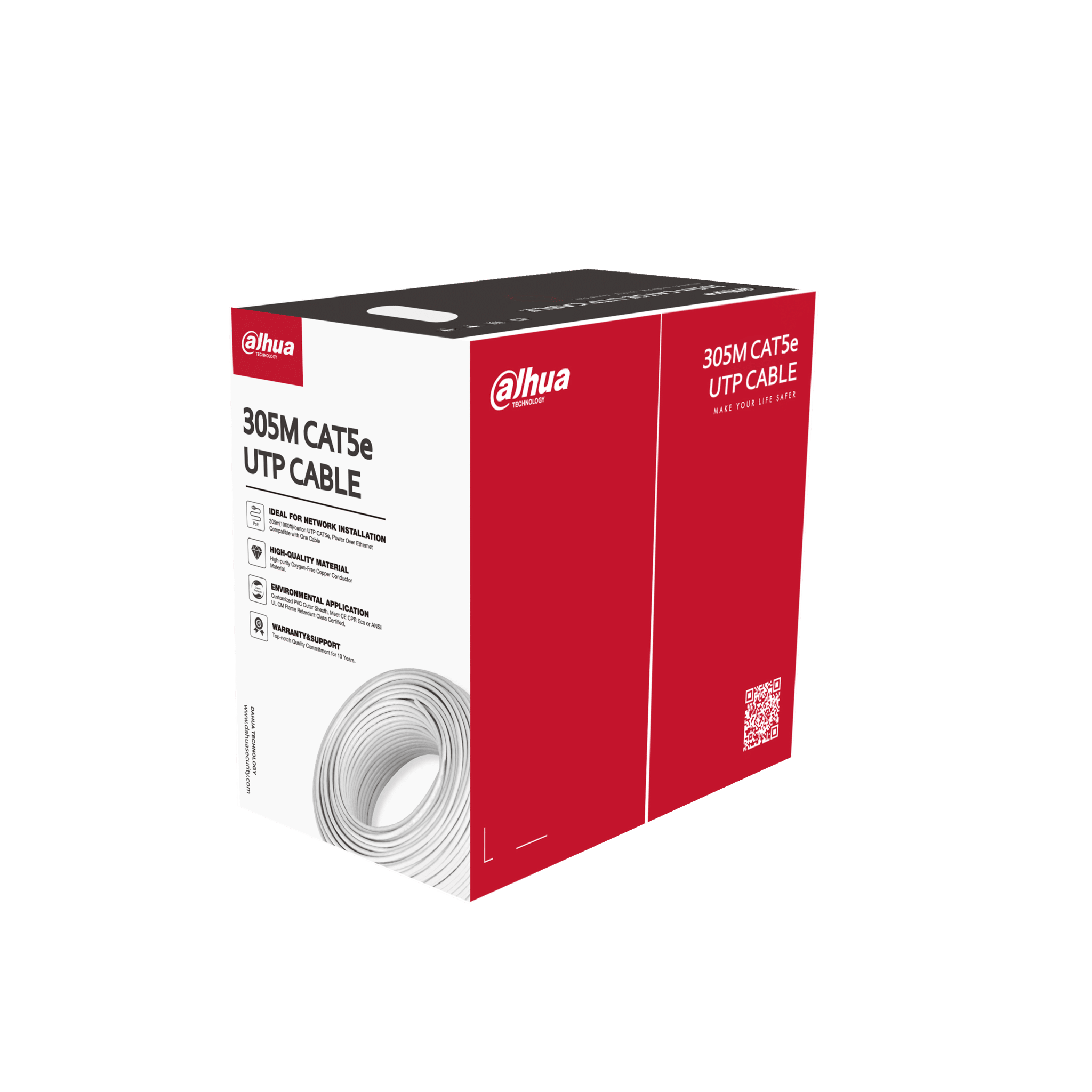

DaHua – CAT 5e UTP 305m Unshielded Cable – Supports PoE – Blue – DH-PFM920I-5EUN-BL

DaHua – CAT5e UTP Cable BlueSKU:  DH-PFM920I-5EUN-BLColour:  BlueLength:  305mPoE Compatible  Yes.  Supports PoE Data sheet:   DH-PFM920I-5EUN_datasheet_2020  Technical SpecificationConductorMaterialOxygen free copper (99.97% purity)Diameter0.45 mm ± 0.01 mmInsulationMaterialHDPEMin. Average Thickness0.18 mmDiameter0.81mm±0.1mmColor (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brownRip CordMaterialPolyesterSpecification500DSheathMaterialPVCMin. Average Thickness0.5 mmDiameter4.7mm±0.3mmColorWhiteElectricalMax. DC Resistance of a Single Conductor12Ω/100 mMin. Insulation Resistance5000MΩ·kmMax. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)Dielectric StrengthNo breakdown with 1KV DC for 1 minTransmissionCharacteristic Impedance100 ± 15ΩNear End Cross Talk≥35.30 dB/100 m@100 MHzMax. Attenuation24.2 dB/100 m@100 MHzReturn Loss≥20.1 dB/100 m@100 MHzMechanicalTensile StrengthSheath≥13.5 MPa, insulation≥16 MPaElongation at BreakSheath≥150%, insulation≥300%Installation Bending Radius>8 times of outer cable diameterConductor Elongation at Break≥10%EnvironmentalShrinkage of Insulation≤5%Color Migration Resistance of InsulationNo migrationSheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100%Low Temperature Bending TestNo cracking after the test
