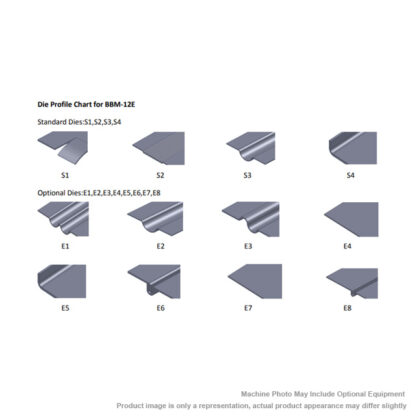

- Description ISO 9001 certified Heavy Duty cast iron construction (4) sets of standard dies S1 – Shear die S2 – Crimp die (RD) S3 – Bead die (R0.25″) S4 – Step die (10mm) Easy adjustment and operation Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset **This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. **Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. SPECIFICATIONS: Max. Capacity: Mild Steel: 12 ga. Max. Capacity: Stainless Steel: 16 ga. Throat Depth: 11 in. Cylinder length: 8 in. Cylinder speed: 20 RPM Main motor: 2 HP, 3 Phase Prewired: 220VAC Optional: 440VAC Overall dimensions: (L x W x H): 55” x 20” x 47” Machine Weight: 530 lbs. OPTIONAL ITEMS: Optional die set, E1/E2/E3/E4/E5/E6/E7/E8: $CALL Custom profile die set: $CALL Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
