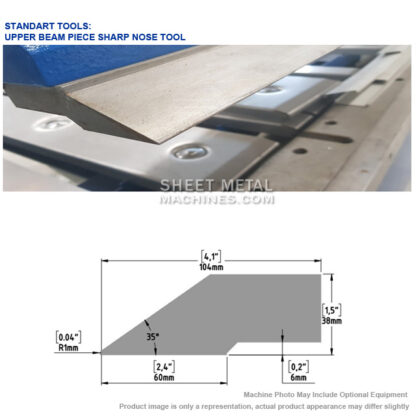

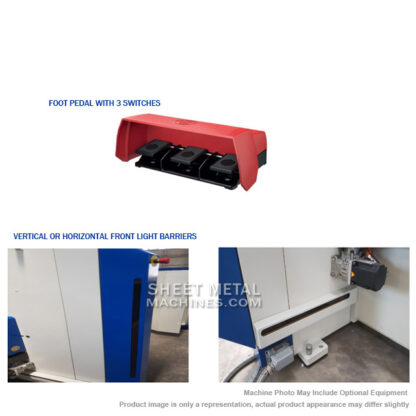

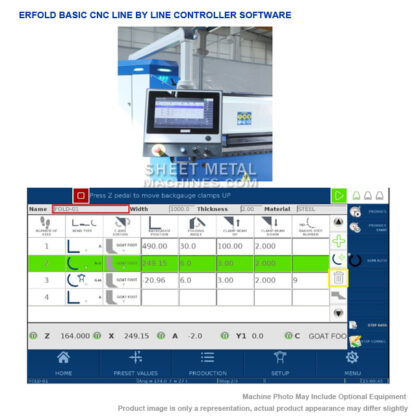

- Description Clamping beam with 7.08 inch opening height and dual servo driven ballscrew spindle system. 30° single piece sharpnose tool. 0.59 and 1.57 inch wide folding beam tools, single piece as 2 sets Bottom beam tool with channels and two sets of single piece folding tools. 2 sets of single piece folding tools as 0.59 and 1.57 inch wide. Manual folding beam adjustment. ERFOLD BASIC CNC control software on 15.6″ touchscreen controller with swivel arm. 39.37 inch servo backgauge system with rectangular sheet support table and solid fingers. Front light barriers. SPECIFICATIONS: MODEL MFE 3240 Sheet Length 126 in. (10.5 ft) Capacity Steel 0.157 in. Stainless 0.098 in. Aluminum 0.196 in. Dimensions 185 x 91 x 79 in. Weight 14,771 lbs. TECHNICAL PARAMETERS OF 11 AXIS Upper Beam (Z axis) Opening height (without tools) 7.08 in. Motor Power (Servo) 2 X 3,5 kW Transmission system Eccentric Clamping speed 2.55 in./sec Folding Beam (Y axis) Folding angle 0 – 150° Motor Power (Sew Eurodrive AC) 2 X 4 kW Folding Speed 70°/sec Folding Beam Height Adjustment (A1-A2 axis) Adjustment height 0 / -1.37 in. Control Manual Back gauge system (X axis) Movement speed 11.81 in./sec Motor Power (Servo) 400 W Positioning / repeatability accuracy /- 0,1 mm Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS – CALL FOR PRICE: 98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options ERFOLD ADVANCED 2D/3D CNC Graphic Control Software. Servo folding beam adjustment. Manual crowning system. Pneumatic quick goatfoot tool clamping. Segmented bottom or folding tools. 3.93 inch high segmented goat foot tool set. ERFOLD ADVANCED 2D/ 3D CNC GRAPHICAL CONTROL SOFTWARE 15.6″ touchscreen all-in one industrial pc controller on swivel arm 2D part editor: you can create a new bending programme by drawing or line by line and and visualize in 2D 3D editor: You can draw the parts in 3D or you can import 3D step/igs files over your offline software You can determine and change the bending sequence on the created part 3D simulation of bending to check for collisions and intervene if needed Capability of choosing material type, thickness, springback, shortening, bending correction and creating data base for every type of material or lot Tool library and edit: You can import, create by drawing and define new tools, save, recall or delete in the library Authorization with password Real time simulated production page in which you can monitor all axes movements on 3D graphic view of the machine and also numerical values of the axes 16 GB hard disk space which allows you to save unlimited bending receipt or tool data Detailed alarm and parameters page 3.93 INCH HIGH SEGMENTED GOAT FOOT TOOL SET MANUAL CROWNING SYSTEM On long and thin sheets, in order to prevent the banana shape bends, you just need to adjust the crowning between % and 0 to give more support from the middle side of the folding beam MOTORIZED FOLDING BEAM ADJUSTMENT (A1-A2 AXIS) Motorized and cnc controlled of the folding beam height. Your bending height is calculated automatically according to the parameters and set just before the bend. LONGER SHEET SUPPORT TABLE (TO WORK FROM THE FRONT SIDE) 59 / 98.42 / 118.11 / 157.48 inch rectangular sheet support table and back gauges Front side gauging arms middle and back side triangle fingers up to 6 sectors Movable sliders for down flanges steady side gauge L / T or U SHAPE SHEET SUPPORT TABLE (TO WORK FROM THE BACK SIDE) L / T or U shape sheet support table with ball casters. Front side gauging arms middle and back side triangle fingers up to 6 sectors PNEUMATIC GOAT FOOT QUICK CLAMPING SYSTEM Eliminates the time for tool-setup. No time spent for screwing or unscrewing, just by turning one key, all tools are clamped or unclamped so that you can slide,remove or mount all goat foot tools just in seconds VACCUM TABLE WITH SUCTION CUPS Thanks to the suction cups placed on the front gauging group; Misalignment of the sheet is avoided. Dropping down of the sheet because of downwards flanges is avoided. No need to support the sheet anymore from the front side during multi radius bends. If the gauging side of the sheet is oval or can not be gauged well to the standard fingers/gauges,you do not need to adjust it again in each bending step.
