Sale!

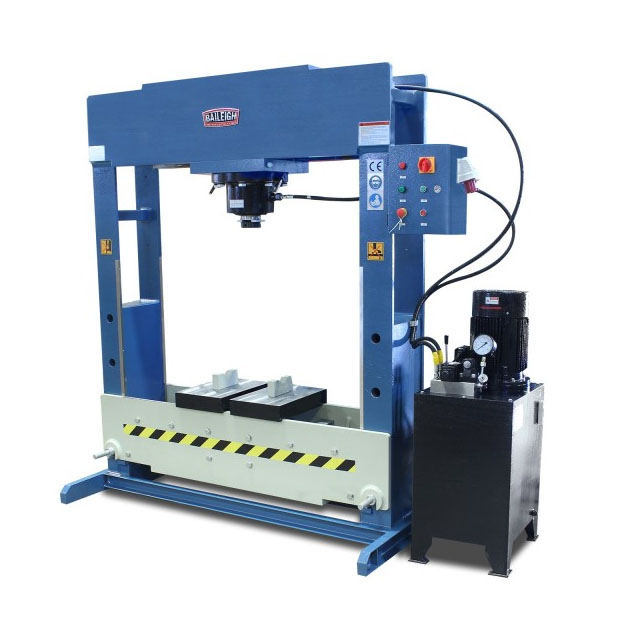

BAILEIGH HSP-110M-1500-HD 110 Ton Hydraulic Workshop Press

$ 43.71

Category: Side Panels

Description With a welded cast-steel framework, this hydraulic press is a must-have for any engineering workshop, repair firm, or technical training institutions. 110-ton maximum capacity. 59” working width. 8”-diameter cylinder with 13.75” stroke. 10 hp motor runs on 220-volt 3-phase power. 2 speeds and pressure regulator let you adjust to suit a given project. Cylinder moves left and right within the frame for off-center parts. Effortlessly adjust the height of the heavy work table using the hydraulic cylinder and lifting chains. 4.09” chrome piston with automatic return saves time after you’re finished applying pressure. Typically kept in stock for fast shipping. Delivery in accordance with CE standards. Baileigh covers this H-frame press with a 1-year parts warranty. Lifetime technical support by phone Recommended for: General assembly, straightening work, testing workpieces, and pressing bearings in and out. SPECIFICATIONS: Return Speed: .23″ / sec. Maximum Pressure: 4375 psi Motor: 10 HP Piston Head Diameter: 4.09″ Pump Speed: 3.9 gal/min. Oil Capacity: 35.65 gal Working Speed: .15″ / sec. Working Width: 59″ Maximum Capacity: 110 Tons Cylinder Stroke: 13.75″ Cylinder Movable: Yes Cylinder Diameter: 8″ Power: 220V / 3-phase Shipping Weight: 1,940 lbs. Shipping Dimensions: 90″ x 37″ x 84″ Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
