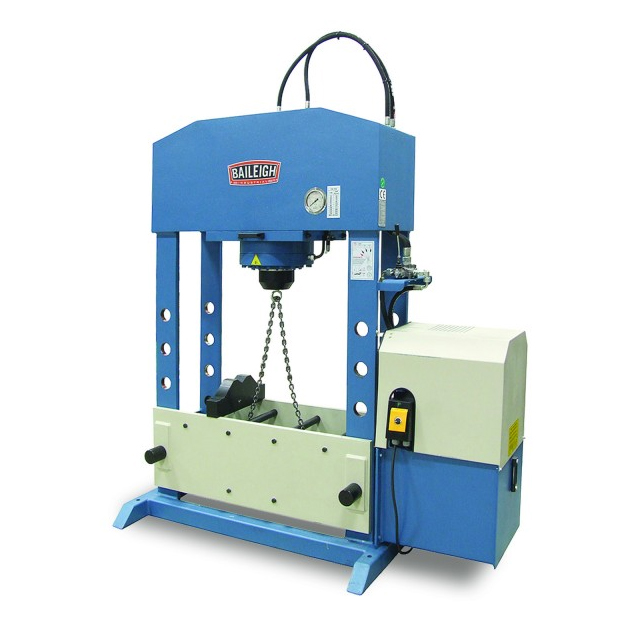

- Description Need a lot of tonnage? Our HSP-176M workshop hydraulic press provides 165 tons of force. Its fully-welded .375” steel plate framework can handle maximum capacity pressure every day. 43.3” working width. 12.75″ diameter cylinder with 11.8” stroke. Industrial-grade hydraulic system. 4 hp motor runs on 220-volt 3-phase power. 2 hydraulic speeds—rapid advance and slower approach—let you choose the right speed for your application. You can operate the ram in automatic (motorized) or manual mode (hand pump) for even more control. Cylinder can move left or right within the framework, perfect for off-center parts and applications. 5.90” chrome piston automatically returns to the top after you’re done pressing. Worktable includes 2 sets of supports made from 3” round stock to keep the press as stable as possible. Motorized table height adjustment: lifting chains on attach to the ram, so the hydraulic system does all the work. No strain on your back! Includes a set of V-blocks. SPECIFICATIONS: Return Speed: .5″ / sec. Maximum Pressure: 3814 psi Motor: 4 hp Piston Head Diameter: 5.90″ Pump Speed: 1.92 / 7.50 gal/min. Oil Capacity: 7.92 gal Working Speed: .090″ / sec. Working Width: 43.3″ Lowering Speed: .350″ / sec. Maximum Capacity: 165 tons Cylinder Stroke: 11.8″ Cylinder Movable: Yes Cylinder Diameter: 12.75″ RPM: 3000 Power: 220V, 3- Phase Shipping Weight: 3,465 lbs. Shipping Dimensions: 96″ x 48 ” x 99″ Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
