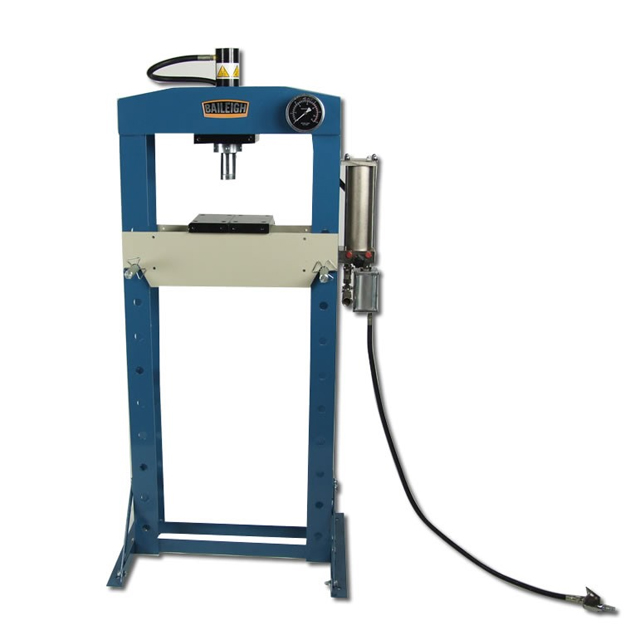

BAILEIGH HSP-20A 20 Ton Shop Press

$ 38.47

Category: Side Panels

Description Looking for a high-quality, inexpensive H-frame press? This hydraulic pneumatic shop press maintains strength and accuracy with a fully-welded solid steel frame. 20-ton capacity. 19.25” working width. 7.5” cylinder stroke. Industrial-grade hydraulic components will provide years of reliable use. Adjustable table to fit a wide variety of applications. Includes pressure regulator and gauge. Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing. Comes standard with a V-block set. Covered by a 1-year parts warranty and lifetime technical support by phone. Typically kept in stock for quick deliveries. SPECIFICATIONS: Piston Head Diameter: 2” Moveable Cylinder: Yes Working Width: 19.25” Max Capacity: 20 Ton Cylinder Stroke: 7.5” Cylinder Diameter: 3” Distance From Table To Ram: Min. 1.38″ – Max. 35.91″ Power Requirement: Pneumatic / Manual Shipping Dimensions: 66″ x 29″ x 12″ Shipping Weight: 319 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
