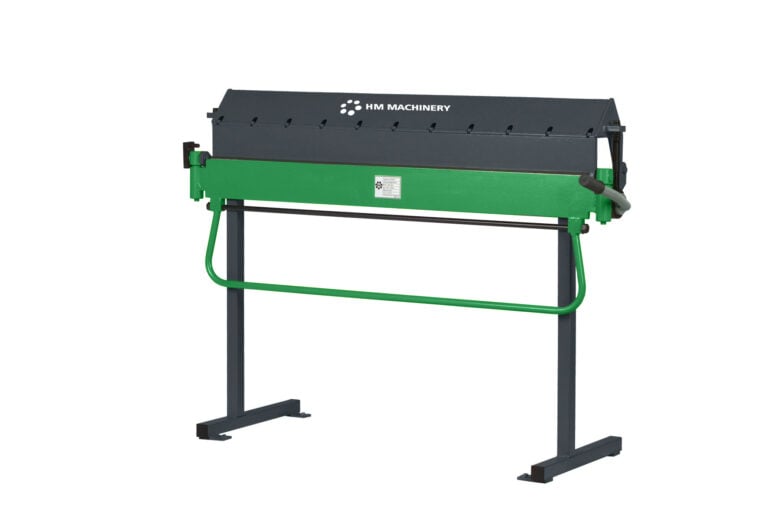

H&M 1300H 4ft x 20 ga. Straight Brake (claw foot nose bar)

Description The HM Machinery 1300H 4ft x 20 ga. Straight Brake (claw foot nose bar) is a simple and easy to operate manual brake. Light weight, but robustly constructed, this machine is built for consistently folding thin sheet metal up to 20 gauge. Precision ground tooling on the single piece nose bar, combined with cross-driven clamping and a repeat angle stop, make the 1300H capable of consistent, repeatable, and accurate bends. The 1300H’s high clamping beam is ideally suited for situations where tall channels or narrow profiles need to be fabricated. The 1300H straight brake comes with floor mounting legs as standard, but can also be bench-mounted for mobile applications. Features and Benefits: Precision ground tooling creates straight, clean bends every time. High clamping beam is ideally suited for fabricating tall channels or narrow profiles. Cross-driven clamping allows easy consistent material positioning . Repeat angle stop enables easily repeatable bends. Full length apron lift handles are ergonomically designed to allow easy operation. Specifications: Maximum Bend Length: 53” Maximum Material Capacity: 20-Gauge Mild Steel Maximum Opening: 1.5” Maximum Folding Angle: 95 Degrees Approx. Shipping Dimensions: 60” x 20” x 42” Approx. Shipping Weight: 235lbs.
