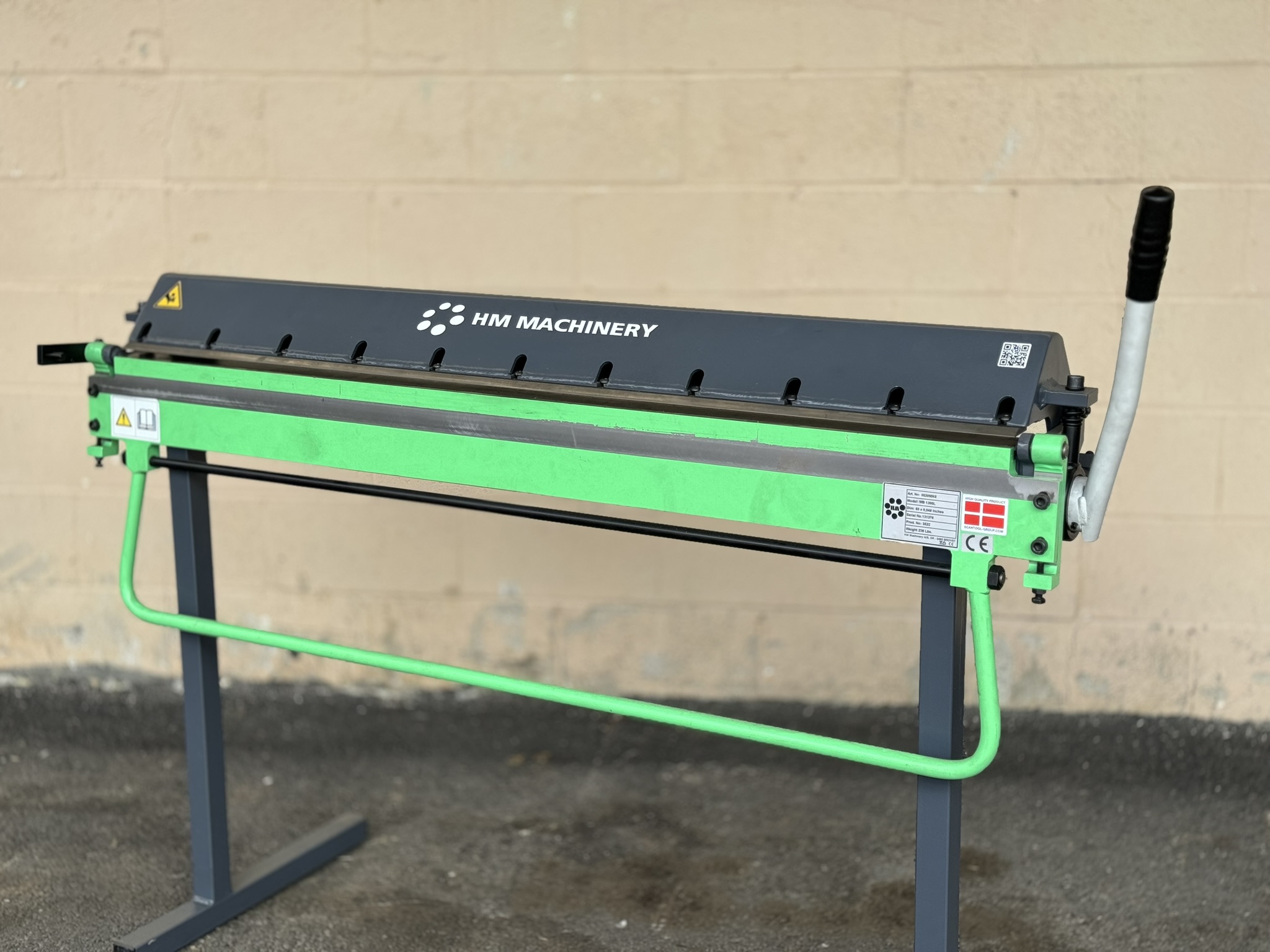

H&M 1300L 4ft x 20 ga Straight Brake with Angle Nose Bar

Description The HM Machinery 1300L 4ft x 20 ga Straight Brake w/ Angle Nose Bar is a simple and easy to operate manual brake. Light weight, but robustly constructed, this machine is built for consistently folding thin sheet metal up to 20 gauge. Precision ground tooling on the single piece nose bar, combined with cross-driven clamping and a repeat angle stop, make the 1300L capable of consistent, repeatable, and accurate bends. The 1300L straight brake comes with floor mounting legs as standard, but can also be bench-mounted for mobile applications. An optional slitter attachment is available to further increase the machine’s fabrication capabilities. Features and Benefits: Precision ground tooling creates straight, clean bends every time. Cross-driven clamping allows easy consistent material positioning . Repeat angle stop enables easily repeatable bends. Full length apron lift handles are ergonomically designed to allow easy operation. Multiple mounting options and accessories make it adaptable to many environments. Specifications: Maximum Bend Length: 53” Maximum Material Capacity: 20-Gauge Mild Steel Maximum Opening: 1.5” Maximum Folding Angle: 135 Degrees Approx. Shipping Dimensions: 60” x 20” x 42” Approx. Shipping Weight: 200lbs.
