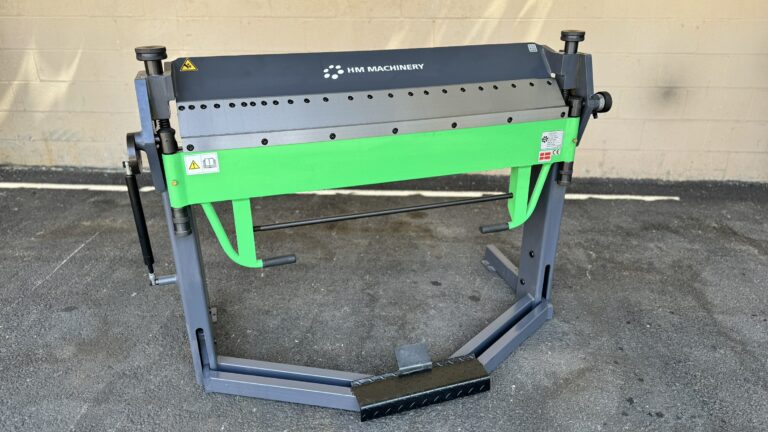

H&M HS-3S 4ft x 14 ga Box and Pan Brake w/ Foot Clamp

Description The HM Machinery HS-3S 4ft x 14 ga Box and Pan Brake w/ Foot Clamp is a large scale brake with angled segmented tooling, designed for the fabrication both straight and box and pan profiles. The HS-3S brake is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends. Features and Benefits: Precision ground tooling creates straight, clean bends every time. Equipped with 13 segments of angled tooling on both top and bottom bending surfaces. Cross-driven clamping allows easy consistent material positioning. Repeat angle stop enables easily repeatable bends. The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles. Specifications: Maximum Bend Length: 50” Maximum Material Capacity: 14-Gauge Mild Steel Maximum Opening: 1.78” Maximum Folding Angle: 135 Degrees Approx. Shipping Dimensions: 66” x 42” x 48” Approx. Shipping Weight: 725lbs.
