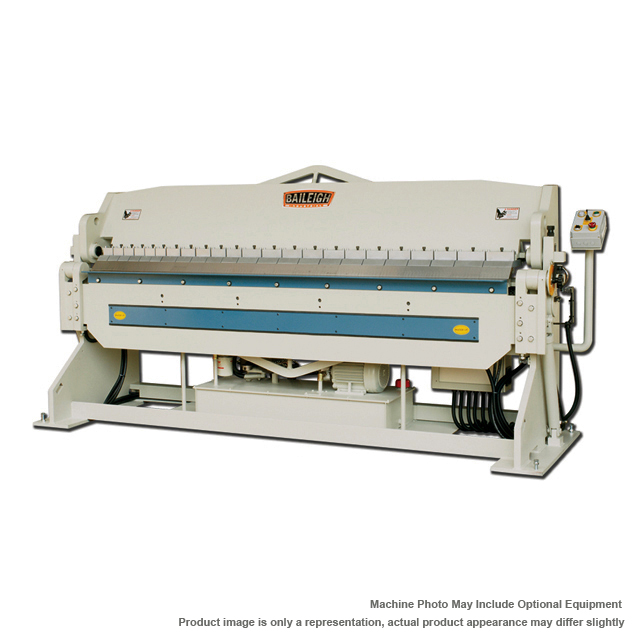

BAILEIGH BB-9610H 8 ft x 10 ga. Heavy Duty Hydraulic Box and Pan (Finger) Brake
$57.37
$92.94
Description Designed with automatic crowning compensation, the BB-9610H hydraulic sheet metal brake adjusts to fit the gauge you’re bending and produces uniform bends. 10-gauge mild steel sheet metal maximum capacity and 1” beam adjustment Bends across its full 8-foot (96”) working width Maximum bend angle of 135° and maximum 6” box depth Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades 5 hp motor runs on 220-volt 3 phase power Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders Adjustable bend auto-stop simplifies production runs – just dial in your desired degree Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode Includes 22 hardened 3-piece fingers (6 of 3″, 4 of 4″, 10 of 5″ and 2 of 6″ ) to create many different size boxes Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10-gauge mild steel SPECIFICATIONS: Length: 96″ Thickness (SS): 10 ga (12 ga) Bend Angle: 0 – 135 deg. Finger Sizes: 3″ / 4″ / 5″ / 6″ Beam Adjustment: 1″ Min Reverse Bend: .984″ Box Depth: 6″ Motor: 5 hp Power Requirement: 220V / 3-phase Shipping Dimensions (L/W/H): 132″ / 46″ / 71″ Shipping Weight: 5,940 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
