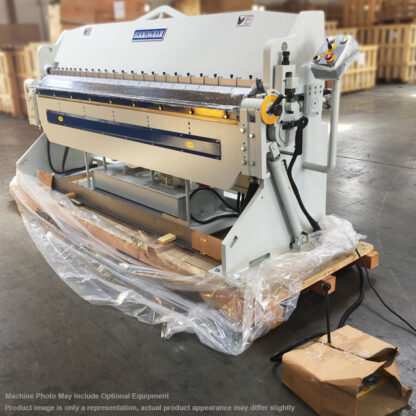

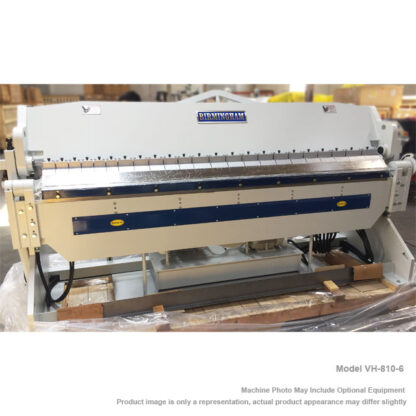

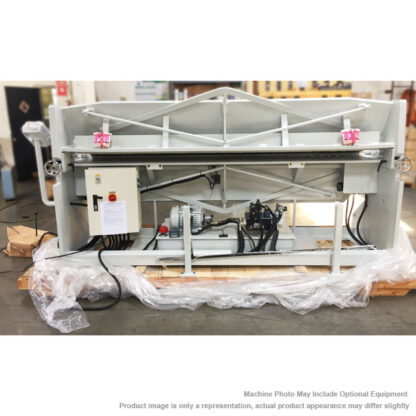

BIRMINGHAM VH-812-6 8 ft x 12 ga. Hydraulic Box and Pan Brake
$43.65
$76.82
Description Bending angle adjustable mechanism, angle range from 0-135 degrees. 24″ manual back gauge with slide and lock for all hydraulic box and ban brakes Adjustable table crowning mechanism, for 3.5mm thickness models Rigid machine base design for 3.5mm thickness models SPECIFICATIONS: Bending Capacity Bending Length: 96″ (8′) Mild steel: 12 ga Stainless steel: 16 ga Bending angle: 0-135° Beam adjustment: 1″ Min. reverse bend: 1/2″ Motor: 3 HP Packing size, inch: 132″ x 46″ x 66″ Net weight, lbs: 5,600 STANDARD FINGER ASSORTMENT, WIDTH AND NUMBER OF FINGERS Size 3″: 6 4″: 4 5″: 10 6″: 2 TOTAL: 22 Specifications and design are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
