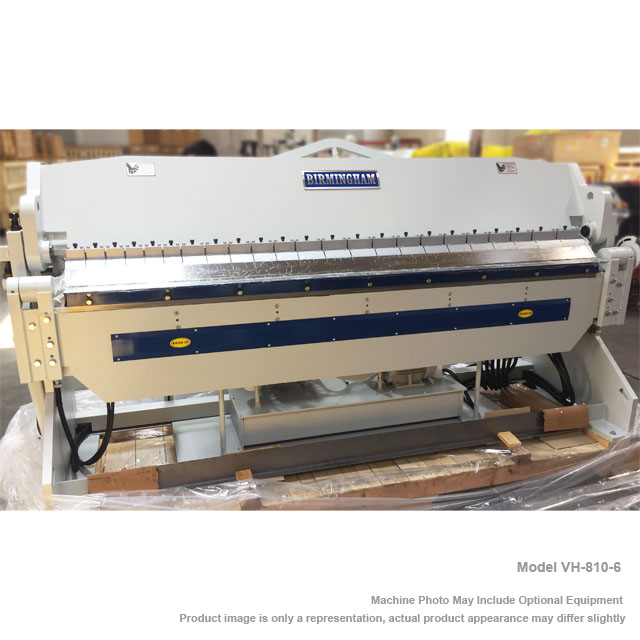

BIRMINGHAM VH-810-6 8 ft x 10 ga. Hydraulic Box and Pan Brake
$45.9
$61.51
Description Bending angle adjustable mechanism, angle range from 0-135 degrees. 24″ manual back gauge with slide and lock for all hydraulic box and ban brakes Adjustable table crowning mechanism, for 3.5mm thickness models Rigid machine base design for 3.5mm thickness models SPECIFICATIONS: Bending Capacity Bending Length: 96 in. Mild steel: 10 ga Stainless steel: 12 ga Bending angle: 0-135° Beam adjustment: 1 in. Min. reverse bend: 1 in. Motor: 5 HP, 3-ph, 220/440v Packing size, inch: 132 x 46 x 71 in. Net weight, lbs.: 6,400 STANDARD FINGER ASSORTMENT, WIDTH AND NUMBER OF FINGERS Size 3″: 6 4″: 4 5″: 10 6″: 2 TOTAL: 22 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS – CALL FOR PRICE: 32 in. Single axis, NC programmable power backgauge with Germany ELGO# P8511 CE Conformity Metric specification machine on request
