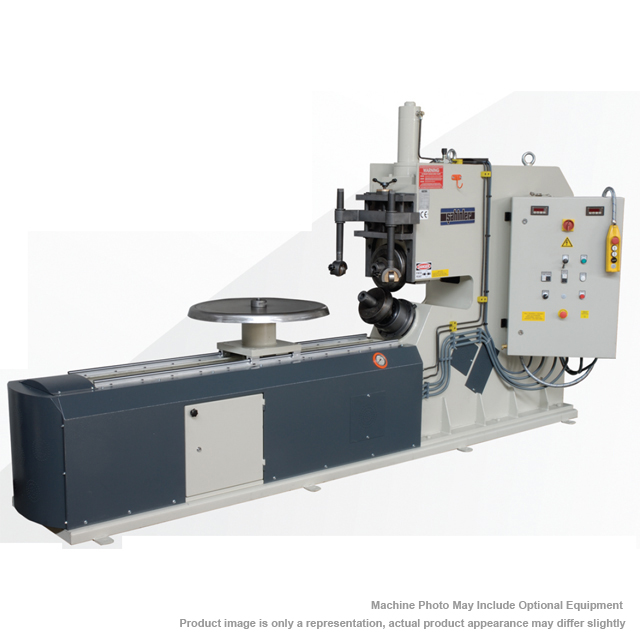

Description One Set of Flanging Rolls Included One Set of Cutting Blades Included Two-Speed Part Carrier (7-14 M/Min) and One-Speed Rotation Cutting System Top And Bottom Flanging Rolls Powered in Rotation with Planetary Reducers Manually Adjustable Sheet Centering for Both Flat and Crowned Dish Flanging Both Cutting and Flanging Operation on the Same Heads SPECIFICATIONS: Max. Plate Diameter: 157 in. Min. Plate Diameter: 17-5/16 in. Max. Flanging Length: 2 in. Max. Flanging Radius: 1.38 in. Capacity-Mild Steel: 1/4 in. Capacity-Stainless Steel: 3/16 in. Motor Power-HP: 10.5 Machine Dimensions: 168 x 29 x 79 in. Weight-Lbs.: 4,510 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Flanging Rolls R.B.: 30 mm R.B.: 35 mm Extra Set of Cutting Blades
