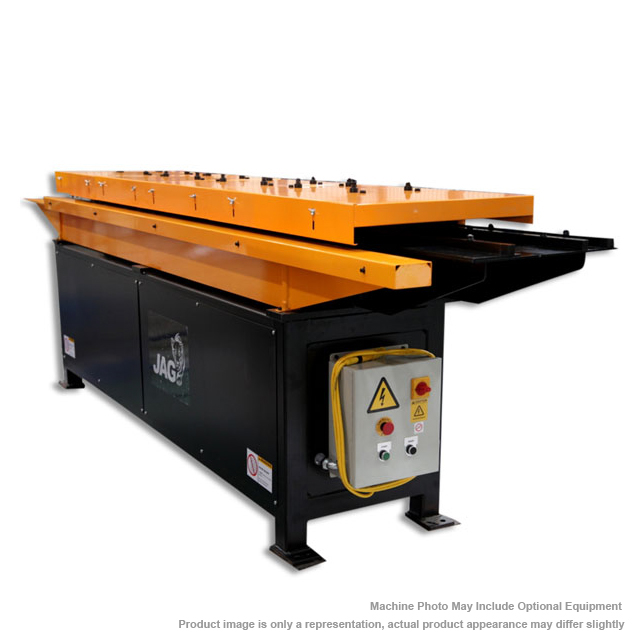

Description Save time and money forming TDF flanges the easy way. The 16-Station TDF Rollformer unitizes steel construction, high yield and tensile strength shafts, and “off the shelf” ball bearings. Other key features and benefits include: Heavy-duty Mod4 (6 pitch) gears. Extended roll shafts for mounting auxiliary rolls (one side outboard only). Optional tooling sets available for outboard mounting. All steel forming head, hardened steel infeed guide, and hardened steel forming rolls mounted on turned and ground spindles. No adjustments necessary when going from 26 gauge to 18 gauge material. Includes Snap Flange Feature. Comes standard with short parts feeder for 6 inch (152 mm) minimum lengths (requires no manual adjustment or removal of machine guards when running short parts). Optional rolls available for TDF clip production (20 gauge). SPECIFICATIONS: Capacity: 16 – 26 gauge (0.55 – 1.31 mm) Depth of Pocket: 1-11/16” (42.9 mm) Speed: 50 fpm (15.2 m/min) Motor: 7-1/2 HP (5.5 kw) – 230 volts, 60 cycle, 3 phase, AC, 1800 RPM Dimensions: 141”L x 33W” x 46”H (3570 x 830 x 1150 mm) Weight: 2,420 lbs. (1,100 kg) OPTIONAL ITEMS: Optional TDF Clip Roll Set: $CALL Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
