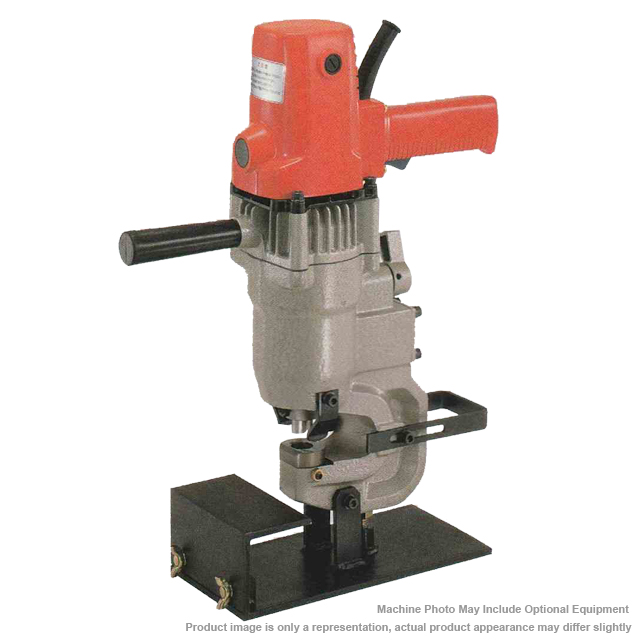

NITTO KOHKI E55-0619 17 Ton HANDY SELFER Electro-Hydraulic Puncher

Description Self-contained hydraulic punch shows its power in making round or elongated holes in flat bar, angle bar or channel iron. ACCESSORIES INCLUDED: 3mm / 4mm / 5mm Allen Wrench Stand Assembly EL Punch 18 / EL Die 18B / EL Die 18A Mounted on Machine Spanner 10 x 12 SPECIFICATIONS: Max. Punching Diameter: 13/16″ Max. Punching Thickness: 1/4″ Max. Output: 17 Tons Power Source (Single Phase): 110-120V AC 50/60 Hz Rated Power Consumption: 670 W Rated Current: 7.0 A Max. Punching Diameter: 13/16″ Max. Punching Thickness: 1/4″ Max. Throat Depth: 2-3/16″ Punching Time: 2 sec. Weight: 31 lbs. SELECTION OF DIES: Application Type of Die Plate Thickness Mild Steel Stainless Steel For Thin Sheets A 1/16″ – 1/8″ Max. 1/8″ For Thick Sheets B 5/32″ – 1/4″ Max. 5/32″ For Channel Iron C 9/32″ – 5/16″ N.A. OPTIONAL ITEMS: TBO00799-0: Foot Switch Assembly: Call for price Punches and Dies for Handy Selfer – see photos, Call for price Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
