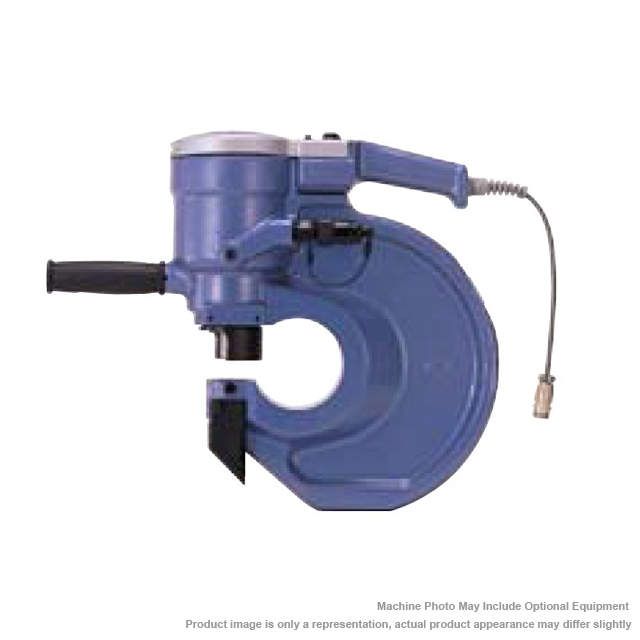

Description Double-acting hydraulic system allows automatic and inching (manual mode) operation. ACCESSORIES INCLUDED: Hose Kit Assembly Hose Cord Assembly Spanner Spanner 12 Sub Handle Assembly Chip Guard Ass’y Tool Box 22mm Punch and Die mounted on machine 4mm Allen Wrench 5mm Allen Wrench SPECIFICATIONS: Max. Punching Diameter: 1-1/16″ Max. Punching Thickness: 5/8″ *, 1/4″ for 304 Stainless Steel Max. Output: 52 Tons Max. Throat Depth: 4-5/16″ Hole Making Time: Punching Time 11.8 sec., Returning Time 5.7 sec. Allowable Max. Pressure: 10,000 psi Weight: 66 lbs. *1″ and 1-1/16″ punch requires the use of a split lock nut (UHA9936-0) and reduces the maximum thickness to 9/16″ In case of mild steel maximum punching thickness must be decided based on the equation of 0.8 x punching diameter. For details see the instruction manual. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
