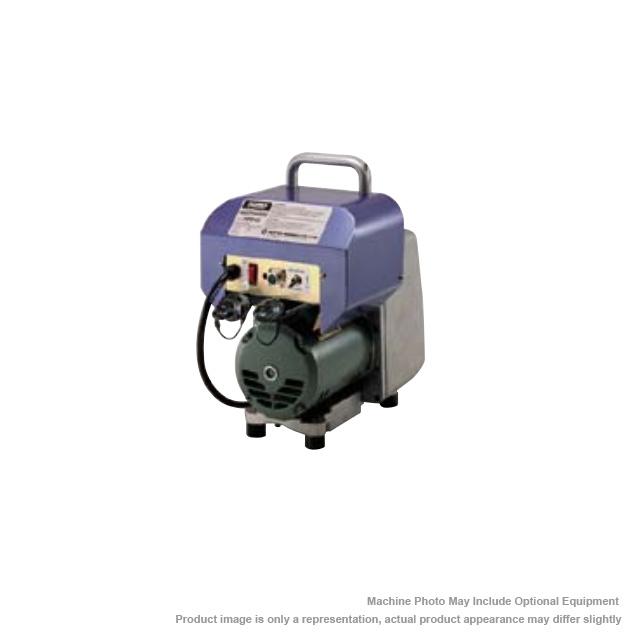

NITTO KOHKI HPD-05 10,000 psi Hydraulic Pump for HS Series Punchers 115V
$47.19
$84.47
Description Hydraulic Power Unit for HS Series Punchers: 115V; 10,000 PSI operating pressure Portable Double-Acting Hydraulic Pump (to be used with the HS Series Punches) SPECIFICATIONS: Power Source (Single Phase) 115/230V AC (230V available upon request) Allowable Max. Pressures 10,000psi (700 kgf/cm2) Output qt/min 50Hz 60Hz At No Load 1.28 1.53 At 10,000 psi 0.59 0.70 Motor 0.4kW 4P Reservoir Capacity 4.26 qt Discharge Port Rc 3/8 Electro-Magnetic Valve 4 way 3 position valve Weight 72 lbs. (32.5kg) Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
