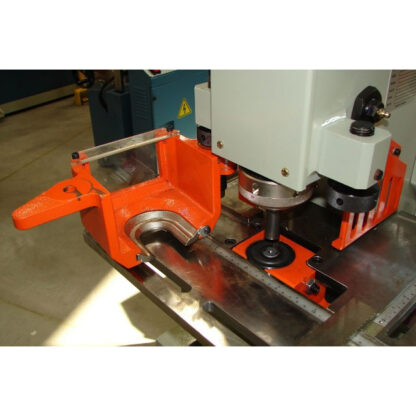

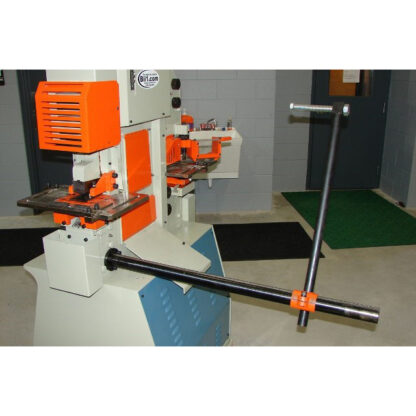

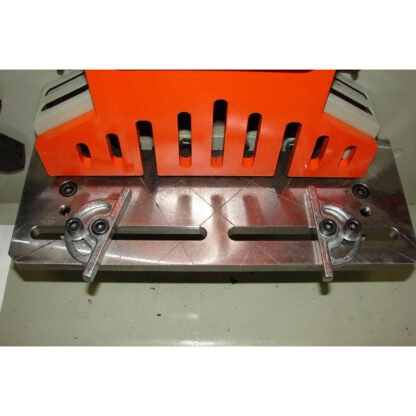

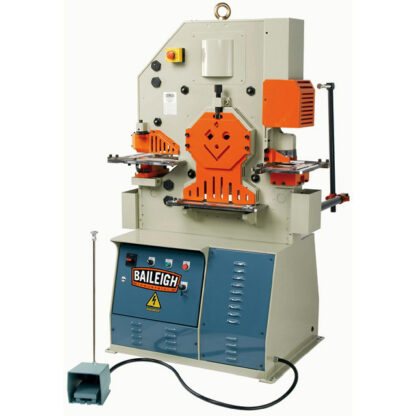

- Description Runs on 220-volt 3-phase power. Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching. Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds. You can set the backgauge and material stops to save time and ensure repeatability for production runs. Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials. Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear. Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes. Our patented swing-away material stripper lets you change tooling in seconds. Specify tooling alignment with a turn of the jog dial for increased safety. Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles. Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful. Rigid steel plate construction strengthens the machine and maintains accuracy. Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s seasoned team of customer service representatives. Why choose the SW-623 over similar machines? Vertical hydraulic movement minimizes deformation and produces more exact cuts than competing ironworkers that use pivot mechanisms. The ironworker and its tooling will both last longer because the vertical direction of the hydraulic pressure reduces stress on the machine. Exceptionally fast punch tooling change system takes time off of production runs. We automatically include extras that other companies consider upgrades, such as a die sets and wastebaskets for scrap. This unit’s small footprint will save space at your shop. You can count on unlimited remote assistance and troubleshooting SPECIFICATIONS: Country of Manufacture: Taiwan Round Bar Shear: 1.5″ Rectangle Notcher W x D x T: 2″ x 3.5″ x .312″ Single Vee Press Brake L x T: 6.312″ x .312″* Punch Capacity: 1.125″ x .625″ Punching Pressure: 62 Tons Pipe Notching: 2.5″* Multi Vee Press Brake L x T: 9.875″ x .156″* Notching Working Height: 40″ Throat Depth: 8″ Vee Notcher Side x Side x T: 3.5″ x 3.5″ x .312″* Working Height: 39.5″ Square Bar Shear: 1.5″ x 1.5″ Channel Shear: 4″* Bar Shearing Working Height: 44″ Angle Shearing Working Height: 40″ Angle Shearing at 90°: 4″ x 4″ x .375″ Angle Bending: 2.5″ x .312″* Angle Flange Trim: 4″ Blade Length: 14.125″ I Beam Shear: 4″* Max. Stroke Length: 2″ Diameter x Thickness: 1.625″ x .437″ Cycles / Min.: 28 @ 15 mm Flat Bar Shearing: 13.50″ x .625″ Flat Shearing Working Height: 31.5″ Power: 5 HP – 220V 3-Phase Shipping Dimensions: 45″ x 30″ x 68″ Shipping Weight: 2,310 lbs. *Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
