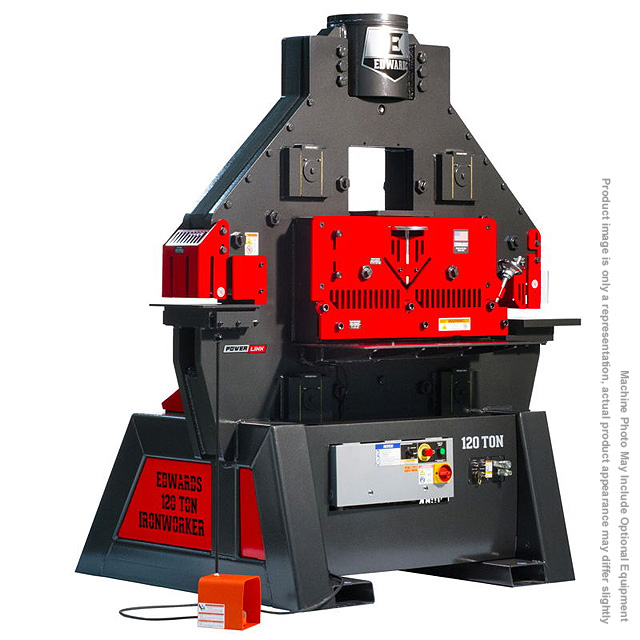

- Description Our most powerful Ironworker, the Edwards 120 Ton JAWS Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24″ wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Five Available Workstations Universal Open Tooling Station 24″ Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA Other voltages and configurations available, also with PowerLink – Call for price and availability SPECIFICATIONS: PUNCH Maximum Capacity (in.) 1-1/2″ Dia. in 1″ A36 (65,000 PSI Tensile) Rated Capacity (Ton) 120 Throat Depth (in.) 11 Open Height (in.) 9-1/8 Shut Height (in.) 7 Stroke (in.) 2-1/2 Work Height (in.) 36-5/8 FLAT BAR SHEAR Max. Capacity (in.) 1/2 x 24 1 x 12 Max. Round Capacity (in.) 1-1/4 Max. Square Capacity (in.) 1-1/4 Work Height (in.) 33-1/4 ANGLE SHEAR Max. Size (in.) 6 x 6 x 1/2 Work Height (in.) 52-1/2 COPER / NOTCHER Max. Size (in.) 3 x 6 x 1/2 Work Height (in.) 40 OPEN CAVITY Height (in.) 9 Width (in.) 11-3/4 Work Height (in.) 51-3/4 GENERAL SPECIFICATIONS Electric Motor Standard 10 HP, 3 Ph, 208V or 230V, 1770 RPM 26A Optional 10 HP 3~ 460 V, 1770 RPM 12 A 10 HP 3~ 575 V, 1770 RPM 10 A 10 HP 1~ 230 V, 1740 RPM 40 A Hydraulic Pump Size (GPM) 24 Valve Pressure (PSI) 3,800 Reservoir (gallons) 17 Cylinder (in.) 2-3/4 ram DIMENSIONS Height (in.) 79-3/8 Width (in.) 60 Depth (in.) 60 Shipping Weight 5,500 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE OPTIONAL ATTACHMENTS – PORTA POWER ED9-HAT001: Portable Power Unit 1 Phase, 230 Volt ED9-HAT002: Portable Power Unit 3 Phase, 230 Volt ED9-HAT003: Portable Power Unit 3 Phase, 380 Volt, 50HZ ED9-HAT004: Portable Power Unit 3 Phase, 460 Volt ED9-HAT005: Portable Power Unit 3 Phase, 575 Volt ED9-HAT006: Portable Power Unit 3 Phase, 208 Volt OPTIONAL ATTACHMENTS – PRESS BRAKE TOOLING ED9-PRB12: Press Brake Tooling 12″ Press Brake OPTIONAL ATTACHMENTS – ACCESSORY MACHINES ED9-HAT1000: 10 Ton Tube/Pipe Bender ED9-HAT5000: Radius Roller OPTIONAL ACCESSORIES AND ATTACHMENTS AVAILABLE – CONTACT FOR DETAILS
