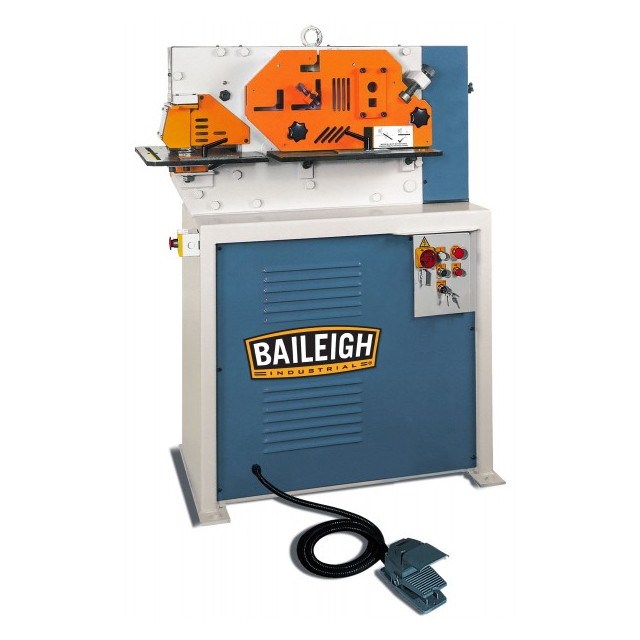

- Description This pivot-style hydraulic ironworker combines a compact footprint with a budget-friendly price to meet the needs of small fabrication shops. The SW-441 includes just about every feature you’d want to help you shear and punch smoothly. Runs on 220-volt single-phase power and will work at virtually any site in North America. Delivers 44 tons of force for punching and shearing. Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching. Runs at up to 23 cycles per minute, increasing the speed of your projects. Product hold-downs for all stations ensure clean, straight shearing. Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron. Product guides make repeatability a cinch when you’re setting up production runs. Large-button control panel and foot pedal punch control are conveniently located. Offers adjustable stroke control, with upstrokes and downstrokes for the punching and shearing sections and a maximum stroke length of 1.125″. Accepts optional tooling available from Baileigh Industrial, such pipe notching and press brake attachments, to make this machine even more versatile. Includes .75” punch and die. Heavy welded steel plate construction maintains accuracy, minimizes flex, and makes the machine last longer. Baileigh covers the SW-441 with a 1-year warranty and lifetime technical support by phone. This ironworker’s small footprint will fit into tight shop spaces and just about any job site. The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a large table with product guides and a foot pedal. Quick-release punch and die system makes changeovers faster and more efficient. CSA and CE certifications vouch for the machine’s exacting quality and safety standards. SPECIFICATIONS: Width x Thickness: 13.77″ x .25″ Round Bar Shear: 1.125″ Punch Capacity: .75″ x .625″ Punching Pressure: 44 Tons Throat Depth: 6.88″ Square Bar Shear: 1″ x 1″ Bar Shearing Working Height: 44.88″ Angle Shearing Working Height: 40″ Angle Shearing at 90°: 3″ x 3″ x .25″ Angle Flange Trim: 3.14″ x .393″ Blade Length: 13.87″ Max. Stroke Length: 1.125″ Diameter x Thickness: 1.5″ x .375″ Cycles / Min.: 23 Flat Bar Shearing: 7.87″ x .5″ Flat Shearing Working Height: 42.32″ Electric Power (HP): 220V, 1-Phase Machine Dimension Apr. (L x W x H): 49″ x 26″ x 55″ Net Weight: 1,320 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
